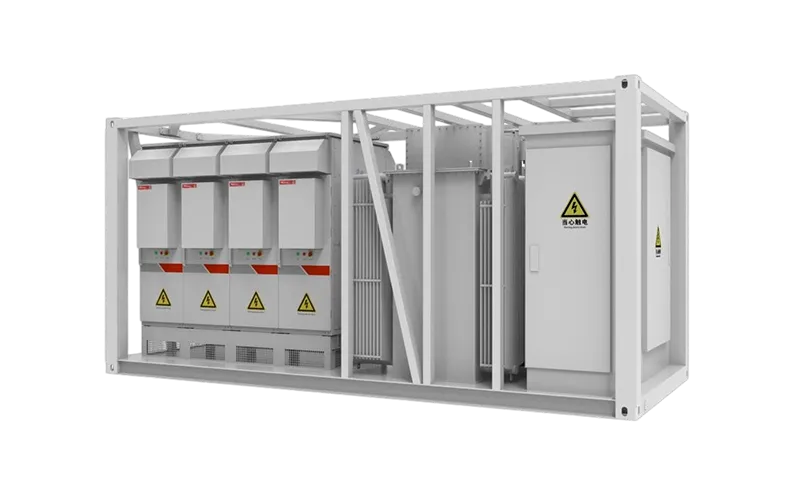

储能系统的内功率升压集成滑块采用结构设计，将 4 个户外储能逆变器柜、双绞线天然气 (ONAN)、高压开关齿轮、辅助电源系统、控制系统、测量系统、消防系统、温度检测系统和通信系统集成到一个滑块中。该滑块可独立接收外部能量管理系统的指令，完成能量调度和功率控制。
分享
产品特性
01
配备 PQ、VF、VSG 模式在线开关功能、高 / 低压穿越功能。
02
Maximum voltage of 1520V, higher power density, smaller footprint.
03
Support 110% long-term overload, the system has high stability.
04
Equipped with frequency and voltage regulation functions, effectively supporting the grid.
05
It has active and reactive power regulation function, supports “black start”.
06
With an IP65 high protection level and C5 anti-corrosion performance, it is suitable for various applications in complex outdoor environments.
产品拓扑
| Model | INPPCSB-5000-10 (Centralized) | |
| AC side parameters | ||
| AC access method | three-phase three-wire | |
| Rated power | 5000kW | |
| Overload capacity | 110%:continuously operate 120%:not less than 1 min | |
| MVside voltage | 10kV | |
| Rated current | 289A | |
| Rated frequency | 50Hz | |
| Number of DC input branches | 4 | |
| DCvoltage range | 1000-1520Vdc | |
| Max voltage on DC side | 1520Vdc | |
| Max current on DC side | 1150A*4 | |
| Protection | IP54 | |
| PCS maximum efficiency | 99% | |
| Altitude | 2000m | |
| Temperature range | -30℃~60℃ | |
| Relative humidity | 0~95%(No condensation) | |
| Cooling method | Intelligent air cooling | |
| Installation location | Outdoors | |
| Weight | <24T | |
| BMS communication interface | CAN/RS485 | |
| EMS communication interface | Ethernet | |
| Communication protocol | ModbusRTU/ModbusTCP/IEC104 Optional:IEC61850 | |
