产品特性
01

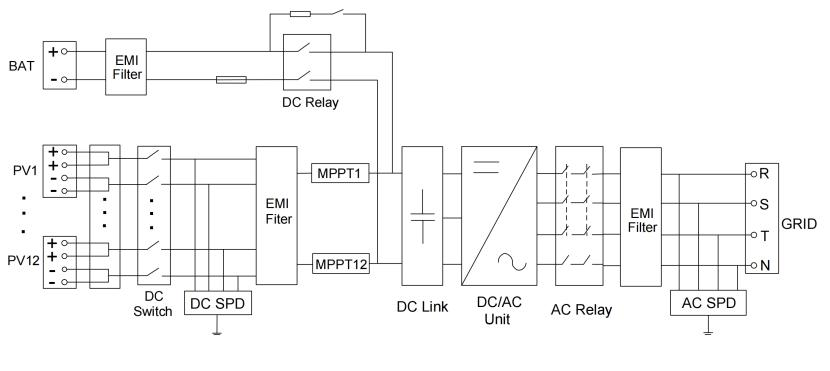

产品拓扑
02
Grid friendly: support grid-forming/black start/LVRT/HVRT/Islanding protection, etc.
03
Support multiple operating modes such as PQ/VF/NSG.
04
PCS IP66, supporting C5 anti-corrosion, can be used directly outdoors.
产品拓扑
| Model | INPHPCS-125 |
| PV Side | |
| Rated Power | 187.5kW |
| DC Voltage Range | 150Vdc~1000Vdc(340Vdc~1000Vdc,Full load) |
| MPPT Inputs | 12 |
| Bus Side | |
| Rated Power | 125kW |
| DC Voltage Range | 600Vdc~1000Vdc(630Vdc~950Vdc,Full load) |
| AC Side | |
| Rated Power | 125kW |
| Rated AC Current | 180A |
| Rated AC Voltage | 400Vac(-15%~15%) |
| Grid Frequency Range | 50/60Hz(±2.5Hz) |
| Other Parameters | |
| Protection | IP65 |
| Corrosion | C5 |
| Dimension | W1140*D300*H700 |
| Weight | 160kg |
| Temperature | -30℃~60℃(＞50℃ derating) |
| Altitude | 2000m(Full load) |
| Certification | EN/IEC 61000-6-2/4 EN/IEC 62477-1 Grid Code such as EN 50549/VDE 4110/G99 Etc. |
