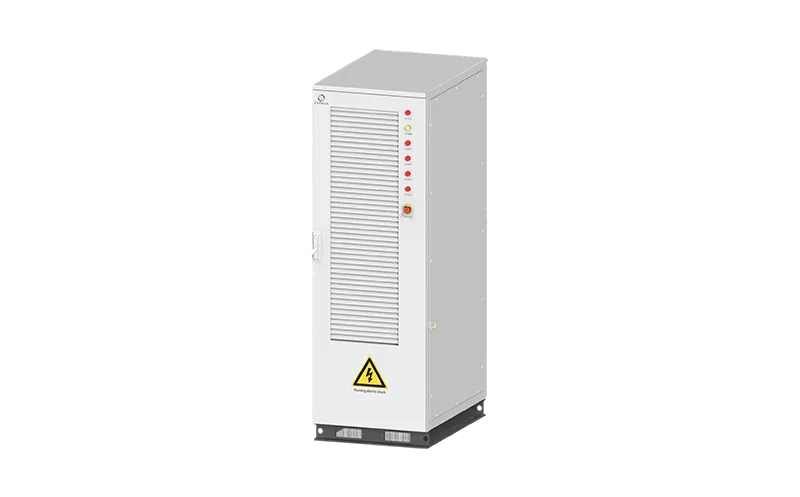

INPPDTMZ-125/0.4-N-OS-A1 是一种 MPPT+STS 集成的微电网储能户外机柜。它集成了 1 个高性能 SiC 基 PCS 模块 (型号：INPPCS-125), 具有三相四支架拓扑；4 个 SiC 基 MPPT 模块 (型号：INPMPPT-62.5) 和 1 个 STS 模块 (INPSTS-300)。支持灵活的设计配置，以优化功率适应性和系统集成灵活性。光伏端最多可集成 4 个模块，系统光伏接入的额定功率为 250 kW。同时，300 kVA STS 模块可以在电网故障时帮助系统无缝切换电网开 / 关。
分享
产品特性
01
灵活性：系统额定光伏功率的自由选择：MPPT (62.5 kW~250 kW), 支持多机柜并行使用。
02
Specification: The MPPT module supports 150–1000Vdc input; the DC side of PCS module supports a wide voltage range of DC600–1000V; AC side of the PCS module with 3P4W connection, supports AC400V 50/60Hz, with the design of three-phase four-leg can support unbalanced load.
03
System: Can be configured with a built-in STS module to achieve seamless on/off grid switching function; Grid/diesel/PV on-demand access, flexible construction of microgrids.
04
High efficiency: The PCS/MPPT module design with SiC components to improve system efficiency, reaching up to 99%.
05
Safety: PV side configuration with Multi-Contact 4mm; the DC side configuration with circuit breaker, double contactor, and fuse protection; for the AC side configuration with circuit breaker, insulation detection and leakage current detection.
产品拓扑
| Model | INPPDTMZ-125/0.4-N-OS-A1 | Remark |
| PV Side Parameter | ||
| Max voltage of PV side(V) | DC1100V | The PVside voltage recommend tobe lower than the bus side woltage |
| MPPT woltage range(V) | DC150~1000V | |
| Full load voltage range(V) | DC350~1000V | |
| Per PV string max current(A) | DC45A | |
| DC Side Parameter | ||
| Alowable voltage range (V) | DC600~1000V | |
| Full load voltage range(V) | DC630~950V | |
| Rated DC current(A) | DC198A | |
| AC Side Parameter | ||
| Access method | 3P4W | |
| Rated ACvoltage(V) | AC400V(-15%~+15%) | |
| Rated AC current(A) | AC180A | |
| Rated AC frequency(Hz) | 50/60±2.5Hz | |
| Other Parameter | ||
| Maximum Efficiency(%) | ≥99% | |
| Operation temperature range℃) | -30℃~50℃ | |
| Operation humidity range(%) | ≤95% | No condensation |
| Noise(dB) | ≤75dB | |
| Protection | IP54 | |
| Altitude | 3000m | ≥2000m derating |
| Dimension W"D*H | 700x 1050×2100mm | |
| Weight(kg) | About 620kg | |
| Cooling method | Forced air cooling | |
